Stainless Flanged Actuated Ball Valves

When timing is critical and the environment is harsh, Integraflow steps up. We recently supported a major UK brewery facing an urgent supply issue on their automated waste handling system. Within 24 hours, we delivered a set of DN50 flanged stainless steel pneumatically actuated ball valves — fully built, tested, and ready for aggressive chemical service.

The Challenge

Our customer was in the final phase of upgrading a waste transfer line in a mega-brewery. The line was responsible for handling by-product flow containing high-strength cleaning agents and caustic solutions. Their existing supplier failed to meet a last-minute demand for compatible valves, leaving the client exposed to costly downtime.

Valve Specification

• Type: 2 Piece Pneumatically Actuated Ball Valve
• Size: DN50
• Body: CF8M (Cast 316 Stainless Steel)
• Ball: Stainless Steel
• Seats & Seals: PTFE (Chemical Resistant)
• Flange Standard: PN16
• Actuation: Double Acting Pneumatic Actuators
• Accessories:

  • 24VDC Solenoid Valves
  • Stainless steel brackets
  • Fully assembled and tested prior to dispatch

Delivered in Under 24 Hours

Thanks to our agile build capability and extensive UK stock, we were able to:

• Assemble and configure all valves to exact client spec
• Fit and test pneumatic actuators and 24vDC solenoids
• Dispatch to site in less than 24 hours from confirmation

Application

These valves are now installed in a fully automated system transferring waste product in a hygienic zone. The aggressive chemical media required a durable, corrosion-resistant build — and Integraflow delivered exactly that with CF8M body construction and PTFE internals.

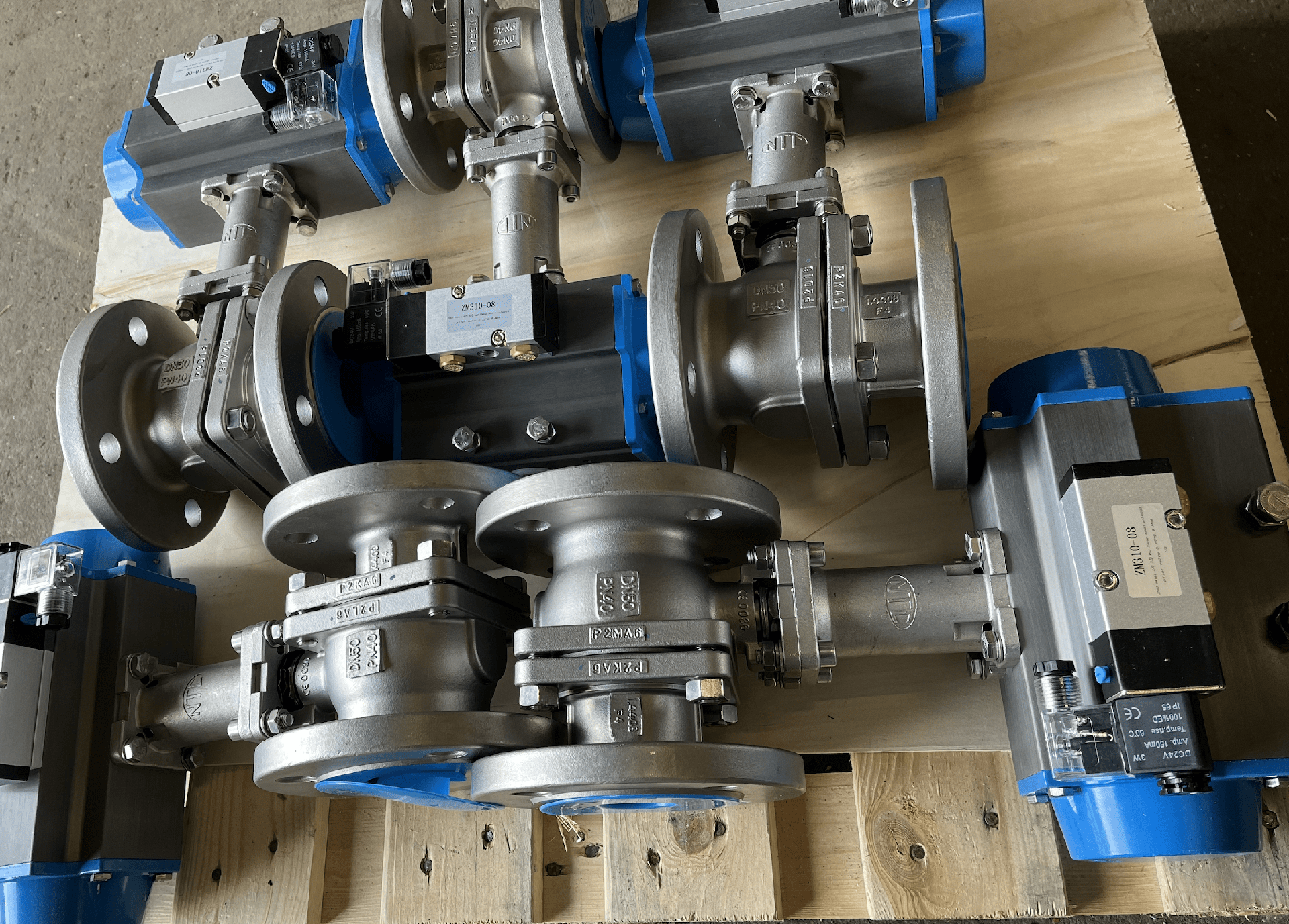

On the Bench: Final Checks Before Dispatch

All valves were tested, labelled, and delivered on custom pallets for quick installation.

Why Choose Integraflow?

• Rapid build and dispatch of specialist actuated valve assemblies
• Certified material compatibility for harsh chemical and hygienic applications
• Full technical support and application advice
• No drama — just reliable, responsive supply

Need engineered valves fast? Call us today on 01384 226855 or explore the Integraflow Valves Range online.
