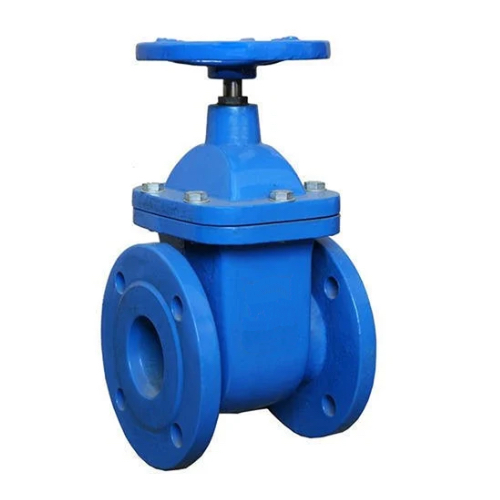

DN125 (5" NB) PN16 FLANGED CAST IRON GATE VALVE MANUAL HANDWHEEL (DIN 3202)

DN125 (5" NB) PN16 FLANGED CAST IRON GATE VALVE MANUAL HANDWHEEL (DIN 3202)

Technical Specification
Product Code
CI-VAL-GAT-P16-125-HW
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
37.2 KG
https://www.processflow.co.uk/web/image/product.template/19029/image_1920?unique=335cd53

£ 451.02 451.02 GBP £ 451.02 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 37.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanged to suit: 5" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 200mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
