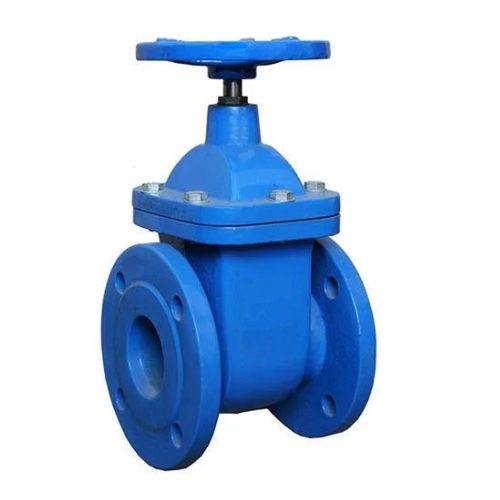

DN40 (1.1/2" NB) PN16 FLANGED CAST IRON GATE VALVE MANUAL HANDWHEEL (DIN 3202)

DN40 (1.1/2" NB) PN16 FLANGED CAST IRON GATE VALVE MANUAL HANDWHEEL (DIN 3202)

Technical Specification
Product Code
CI-VAL-GAT-P16-40-HW
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
7.5 KG
https://www.processflow.co.uk/web/image/product.template/19024/image_1920?unique=9f8b7da

£ 167.37 167.37 GBP £ 167.37 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 7.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanged to suit: 1.1/2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 140mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve
Product Code: CI-VAL-GAT-P16-40-HW


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
