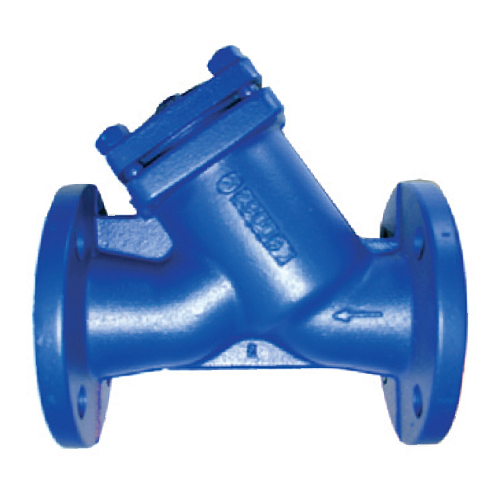

DN150 (6" NB) PN16 FLANGED CAST IRON WRAS APPROVED Y TYPE STRAINER

DN150 (6" NB) PN16 FLANGED CAST IRON WRAS APPROVED Y TYPE STRAINER

Strainer
Technical Specification
Product Code
CI-VAL-STR-150-P16-SS
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
49.0 KG
https://www.processflow.co.uk/web/image/product.template/20995/image_1920?unique=29d0392

£ 734.58 734.58 GBP £ 734.58 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 49.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Strainer
Suits Flange Size: DN150 (6" NB) PN16
Valve Type: Y Type Strainer
Body Material: EN GJL 250 Epoxy Coated Ductile Iron
Gasket Material: Graphite
Screen / Mesh Material: 304 Stainless Steel
Operation: Automatic
Pressure Rating: PN16
Temperature Range: -10°C to +300°C

Face to Face: 480mm Overall Length

Part of our Y Type Strainers Range
Product Code: CI-VAL-STR-150-P16-SS


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
