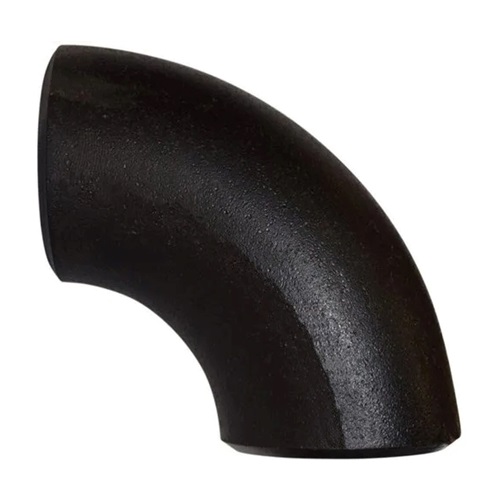

DN20 (¾" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW
Technical Specification
Product Code
CS-NB-BW-ELB-90-20-XS-S80
Outside Diameter (mm)
26.70mm
Weight
0.11 KG
Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to Face: 28.6mm
Schedule: XS
Weight: 0.11kg
Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
