  3. DN500 (20" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Website List 200 (PFC)

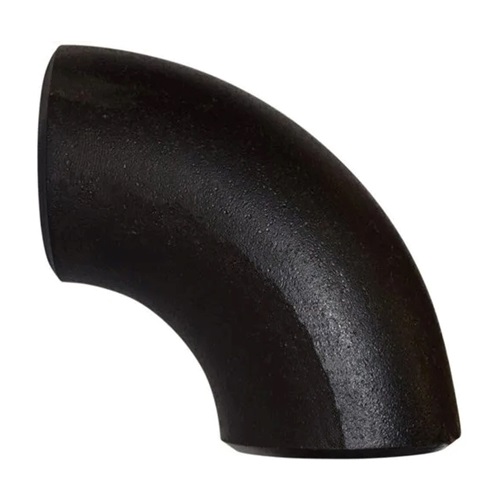

DN500 (20" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW

DN500 (20" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW

Technical Specification
Product Code
CS-NB-BW-ELB-90-LR-500-STD
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
138.0 KG
https://www.processflow.co.uk/web/image/product.template/14413/image_1920?unique=1ec7b52

£ 728.43 728.43 GBP £ 728.43 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 138.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to Face: 762.0mm
Schedule: STD
Weight: 138.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Product Code: CS-NB-BW-ELB-90-LR-500-STD


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
