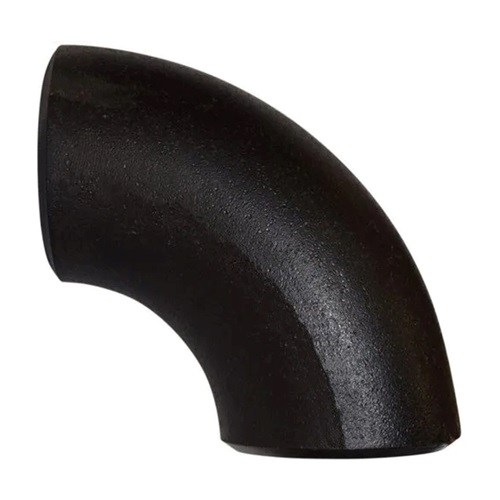

DN900 (36" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW

DN900 (36" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW

Technical Specification
Product Code
CS-NB-BW-ELB-90-LR-900-STD
Size (Inch)
36"
Outside Diameter (mm)
914.40mm
Weight
426.0 KG
https://www.processflow.co.uk/web/image/product.template/14427/image_1920?unique=35122ae

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 426.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 914.4mm
Wall Thickness: 9.52mm
Centre to Face: 1372.0mm
Schedule: STD
Weight: 426.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Product Code: CS-NB-BW-ELB-90-LR-900-STD


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 36"
Outside Diameter (mm) 914.40mm
