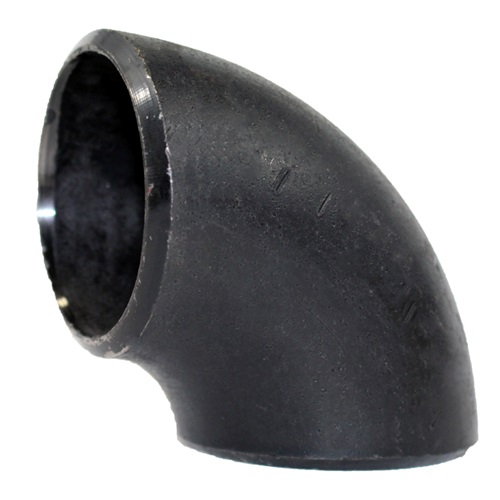

DN550 (22" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

DN550 (22" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Technical Specification
Product Code
CS-NB-BW-ELB-90-SR-550-XS
Size (Inch)
22"
Outside Diameter (mm)
558.80mm
Weight
117.0 KG
https://www.processflow.co.uk/web/image/product.template/14614/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 117.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 559.0mm
Schedule: XS
Weight: 117.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Product Code: CS-NB-BW-ELB-90-SR-550-XS


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 22"
Outside Diameter (mm) 558.80mm
