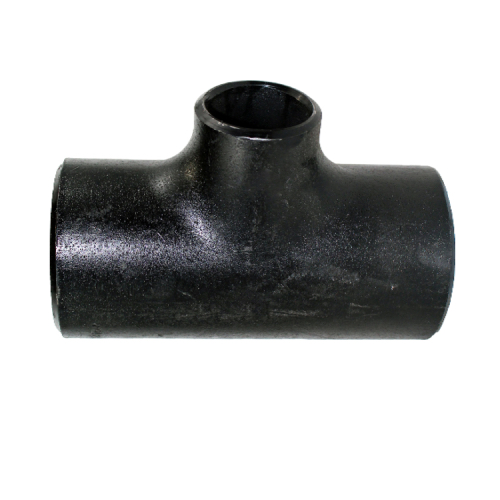

DN600 x DN550 (24 x 22" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE

DN600 x DN550 (24 x 22" NB) SCHEDULE 40 / STD A234 WPB REDUCING TEE

Technical Specification
Product Code
CS-NB-BW-TEE-RED-600X550-STD
Size (Inch)
22"
Outside Diameter (mm)
609.60mm
Weight
237.0 KG
https://www.processflow.co.uk/web/image/product.template/14661/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 237.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 610 x 559mm
Wall Thickness (Run x Branch): 9.53 x 9.53mm
Centre to End (Run): 432mm
Centre to End (Branch): 400mm
Schedule: STD
Weight: 237.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Product Code: CS-NB-BW-TEE-RED-600X550-STD


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 22"
Outside Diameter (mm) 609.60mm
