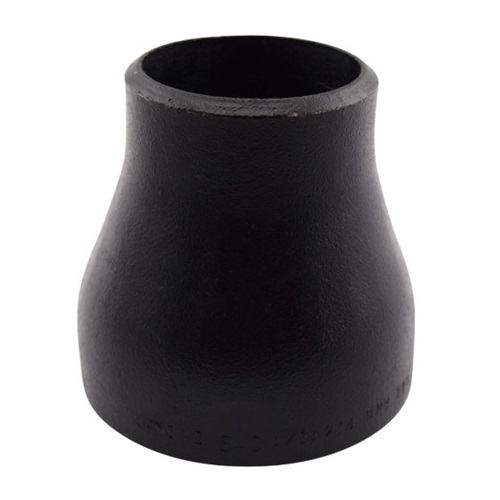

DN50 X 40 (2" X 1.1/2" NB) SCHEDULE 40/STD A234 WPB CONCENTRIC REDUCER

DN50 X 40 (2" X 1.1/2" NB) SCHEDULE 40/STD A234 WPB CONCENTRIC REDUCER

Fittings
Technical Specification
Product Code
CS-NB-CON-S40-50X40-A234
Size (Inch)
2"
Size (Inch)
1.1/2"
Outside Diameter (mm)
60.30mm
Weight
0.41 KG
https://www.processflow.co.uk/web/image/product.template/10222/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.41 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Fittings

Side One suits an outside diameter (OD) of: 60.3mm
Side One wall thickness (WT): 3.91mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 76mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Product Code: CS-NB-CON-S40-50X40-A234
