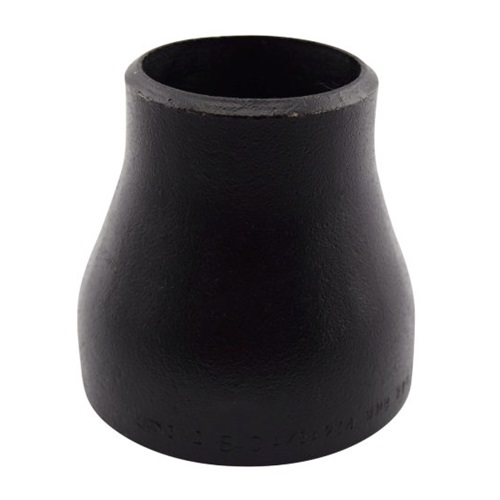

DN80 x 65 (3" X 2.1/2" NB) SCHEDULE 40/STD A234 WPB CONCENTRIC REDUCER
Fittings
Technical Specification
Product Code
CS-NB-CON-S40-80X65-A234
Size (Inch)
3"
Size (Inch)
2 1/2"
Outside Diameter (mm)
88.90mm
Weight
0.98 KG
Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm
Side Two suits an outside diameter (OD) of: 73mm
Side Two wall thickness (WT): 5.16mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)
Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric
