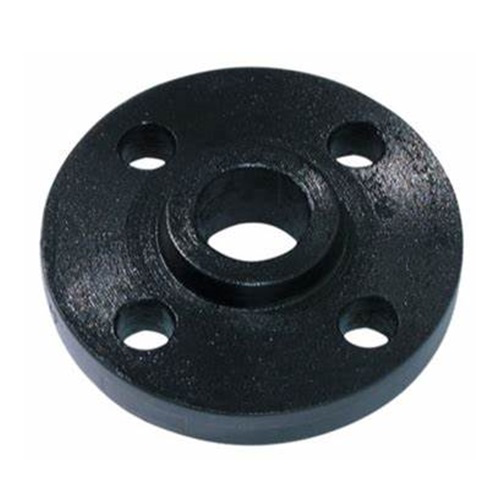

DN10 PN40 RF BOSSED SLIP ON FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-10-RF-SOB-P40-S235JR
Outside Diameter (mm)
17.10mm
Weight
0.64 KG
Flange outside diameter: 90mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 60mm (K)
Hub height: 22mm (H1)
Neck diameter: 30mm (N2)
Raised Face Diameter: 40mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
