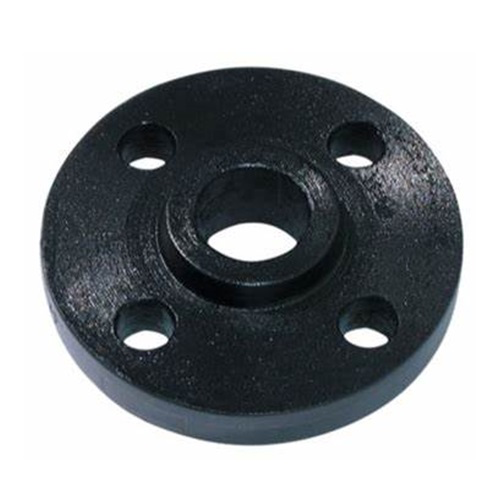

DN10 PN6 RF BOSSED SLIP ON FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-10-RF-SOB-P6-S235JR
Outside Diameter (mm)
17.10mm
Weight
0.32 KG
Flange outside diameter: 75mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 12mm
Pitch Circle Diameter (PCD): 50mm (K)
Hub height: 20mm (H1)
Neck diameter: 25mm (N2)
Raised Face Diameter: 35mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
