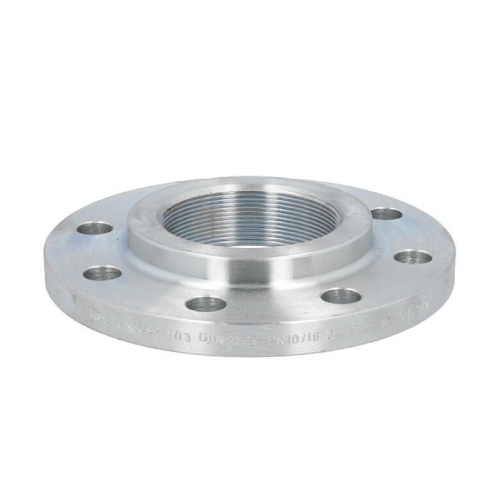

DN100 (4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

DN100 (4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

Flange outside diameter: 210mm (D)
Flange thickness: 15mm (C2)
Pitch Circle Diameter (PCD): 170mm (K)
Flange hub height: 34mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 4"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Connection / End
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Grade S235JR
Outside Diameter (mm) 114.30mm
Nominal Size DN100
Connection / End BSPP
Pressure Rating PN6
Flange Face Raised face (RF)
