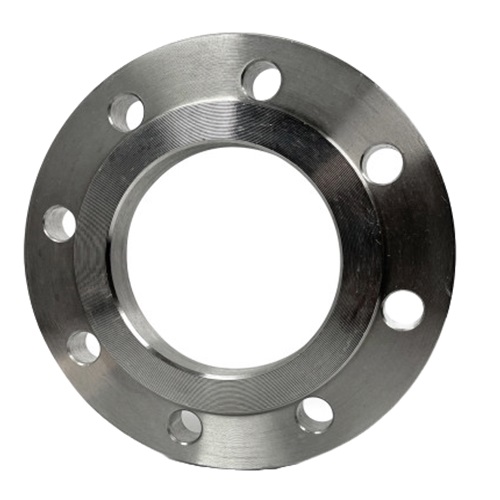

DN100 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-100-RF-SO-P25-P40-S235JR
Outside Diameter (mm)
114.30mm
Weight
6.07 KG
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 235mm (D)
PCD: 190mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
