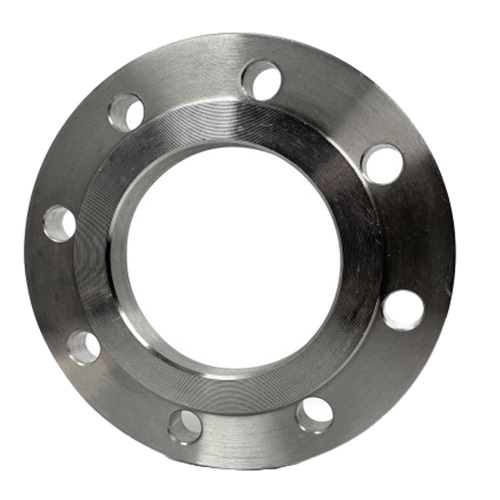

DN100 (4" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
New Project.webp

DN100 (4" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-100-RF-SO-P6-S235JR
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
3.26 KG
https://www.processflow.co.uk/web/image/product.template/14947/image_1920?unique=ca03c16

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 3.26 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

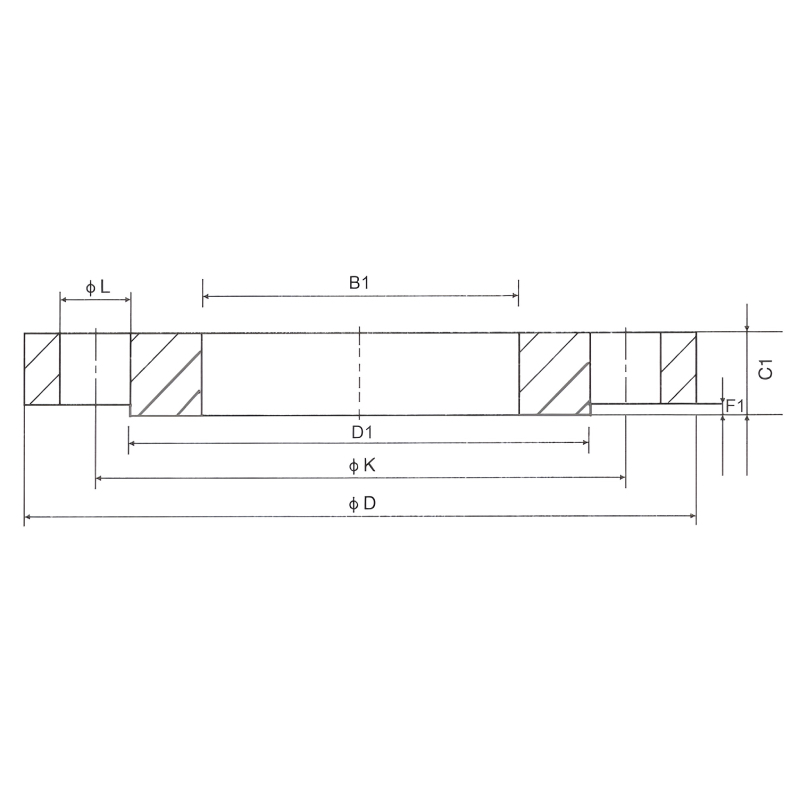

Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
