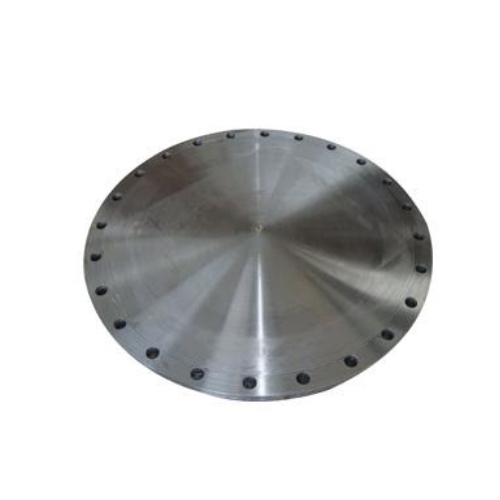

DN1000 (40" NB) PN16 FF BLIND FLANGE CS S235 JR

DN1000 (40" NB) PN16 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-1000-FF-BLA-P16-S235JR
Weight
246.37 KG
https://www.processflow.co.uk/web/image/product.template/15383/image_1920?unique=29d0392

£ 3,744.00 3744.0 GBP £ 3,744.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 246.37 KG per item
Available to order Sign up for trade prices

    This combination does not exist.

    Flange OD (D): 1255mm
    Drilling (No. x Bolt Hole x L): 28 x M39 x 42mm
    Pitch circle diameter (K): 1170mm
    Flange thickness (C1): 90mm
    Raised face diameter (D1): 1080mm
    Raised face height (F1): 5mm
    Material: S235 JR
    Rating: PN16
    Type: Blind flange (EN1092-1 Type 05)
    Standards: EN1092-1
    Flange Face: Flat Face
    Certification Available: 2.1 BS EN 10204 Material Certification

    Alternative terminology:
    Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
    Product Code: CS-NB-FLA-1000-FF-BLA-P16-S235JR
