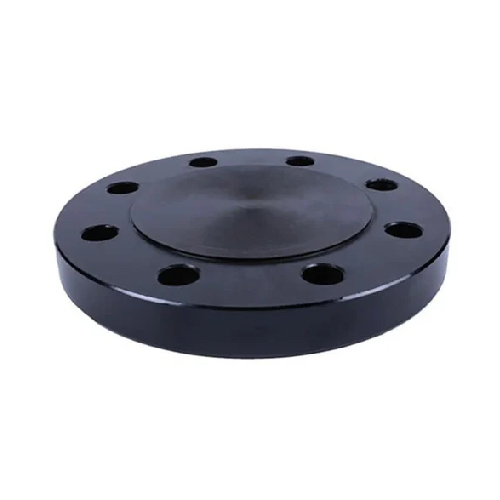

DN125 (5" NB) ASA600 RF BLIND FLANGE CS A105N

DN125 (5" NB) ASA600 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-125-RF-BLA-600-A105N
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
28.5 KG
https://www.processflow.co.uk/web/image/product.template/15681/image_1920?unique=29d0392

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 28.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 330.2mm
Flange thickness (C): 44.4mm
Pitch circle diameter (K): 266.7mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Product Code: CS-NB-FLA-125-RF-BLA-600-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
