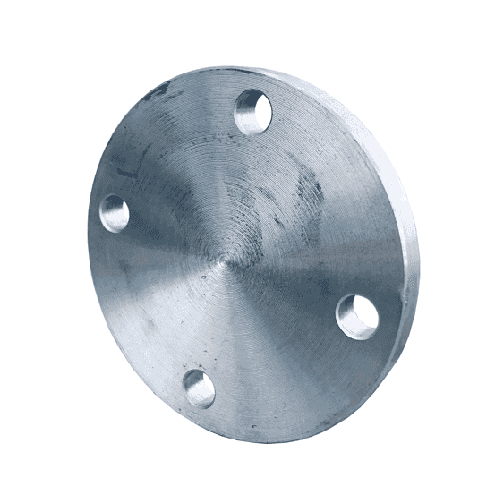

DN15 (1/2" NB) PN6 FF BLIND FLANGE CS S235 JR

DN15 (1/2" NB) PN6 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-15-FF-BLA-P6-S235JR
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
0.43 KG
https://www.processflow.co.uk/web/image/product.template/15284/image_1920?unique=29d0392

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.43 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Flat Face (RF): 40mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Product Code: CS-NB-FLA-15-FF-BLA-P6-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 21.30mm
