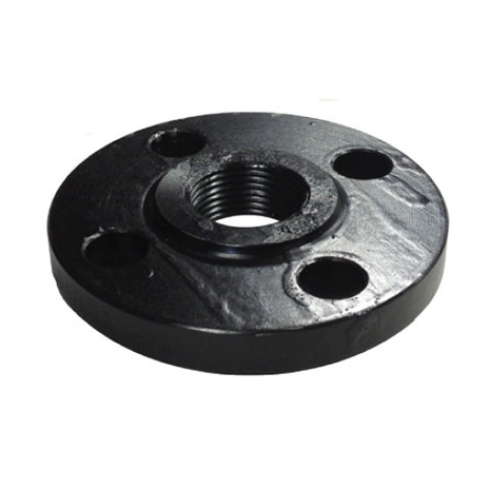

DN15 (1/2" NB) ASA300 1/2" NPT THREADED FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-15-FF-SCR-300-A105N
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
0.7 KG
Outside diameter (O): 95.2mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 66.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 35.0mm
Bore diameter (Q): 23.6mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
