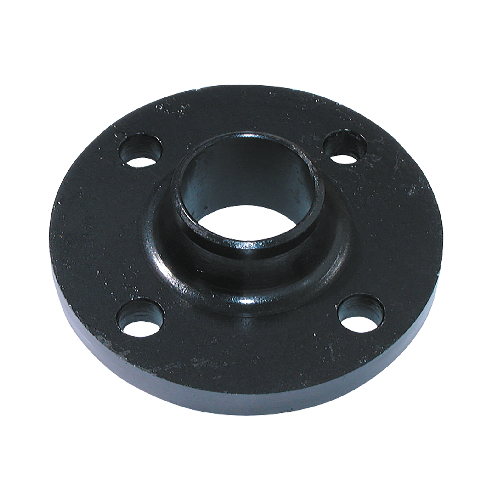

DN15 (1/2 NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
Technical Specification
Product Code
CS-NB-FLA-15-RF-WN-S40-300-A105N
Outside Diameter (mm)
21.30mm
Weight
0.9 KG
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 21.30mm |
