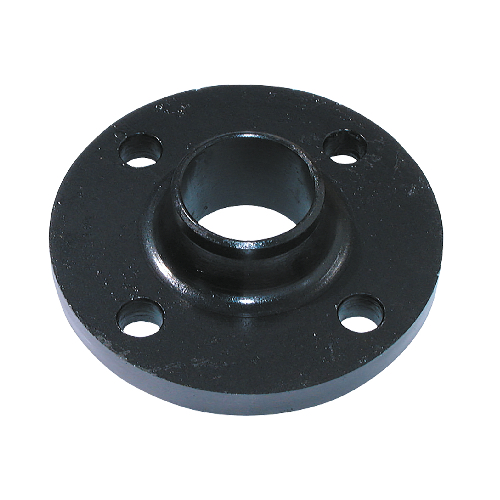

DN15 (1/2" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

DN15 (1/2" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-15-RF-WN-STD-S40-P40-A105N
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
0.76 KG
https://www.processflow.co.uk/web/image/product.template/22566/image_1920?unique=29d0392

£ 10.62 10.62 GBP £ 10.62 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.76 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 95.00mm
Flange thickness (C): 16mm
Pitch circle diameter (K): 65.00mm
Hub base diameter (Y): 32.00mm
Raised face height (RF): 3.0mm
Raised face diameter (R): 45.00mm
Number of bolt holes: 4
Material: A105N
Rating: PN40
Type: Weld Neck Flange (Type 11)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, PN40, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
Product Code: CS-NB-FLA-15-RF-WN-STD-S40-P40-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 21.30mm
