  3. DN150 (6" NB) (165.1mm) PN16 RF SLIP ON PLATE FLANGE CS S235 JR
Website List 200 (PFC)

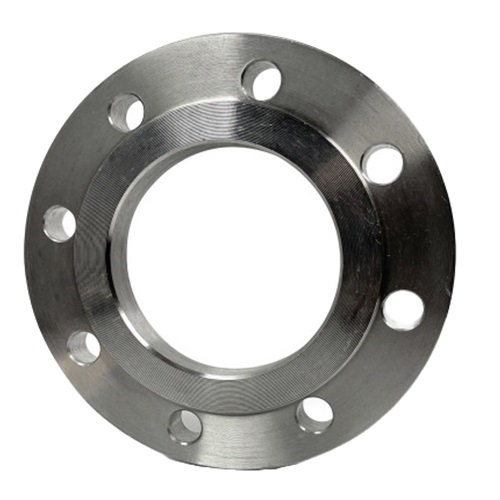

DN150 (6" NB) (165.1mm) PN16 RF SLIP ON PLATE FLANGE CS S235 JR

DN150 (6" NB) (165.1mm) PN16 RF SLIP ON PLATE FLANGE CS S235 JR

Flanges
Technical Specification
Product Code
CS-NB-FLA-150-165-RF-SO-P16-S235JR
Size (Inch)
6"
Outside Diameter (mm)
165.10mm
Weight
7.6 KG
https://www.processflow.co.uk/web/image/product.template/10210/image_1920?unique=29d0392

£ 28.86 28.86 GBP £ 28.86 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 7.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanges

Suits an outside diameter (OD) of: 165.1mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 22mm
Certification Available: 2.1 BS EN 10204 Material Certification

Product Code: CS-NB-FLA-150-165-RF-SO-P16-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 165.10mm
