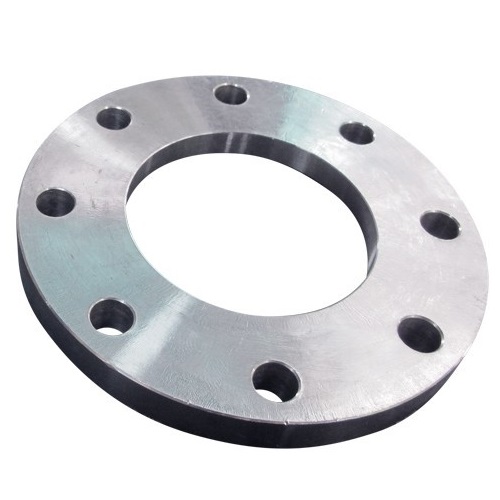

DN150 (6" NB) PN6 FF SLIP ON PLATE FLANGE CS S235 JR
Flanges
Technical Specification
Product Code
CS-NB-FLA-150-FF-SO-P6-S235JR
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
4.76 KG
Suits an outside diameter (OD) of: 168.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Bolt Holes: 8 off to suit M16 Bolts
PCD: 225mm
Flange Diameter: 265mm
Flange Thickness: 17mm
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 6" |
| Outside Diameter (mm) | 168.30mm |
