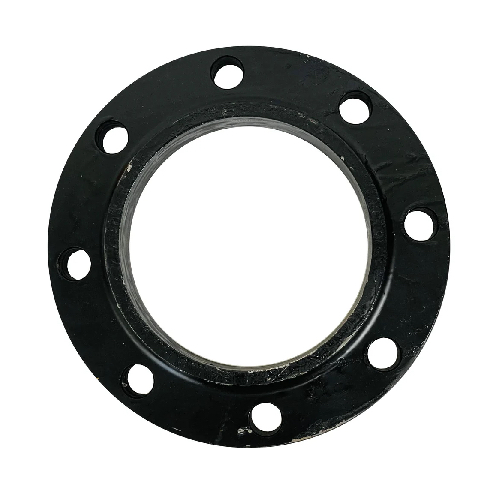

DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-150-RF-SOB-ASA150-A105N
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
7.5 KG
https://www.processflow.co.uk/web/image/product.template/15107/image_1920?unique=29d0392

£ 36.66 36.66 GBP £ 36.66 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 7.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Product Code: CS-NB-FLA-150-RF-SOB-ASA150-A105N
