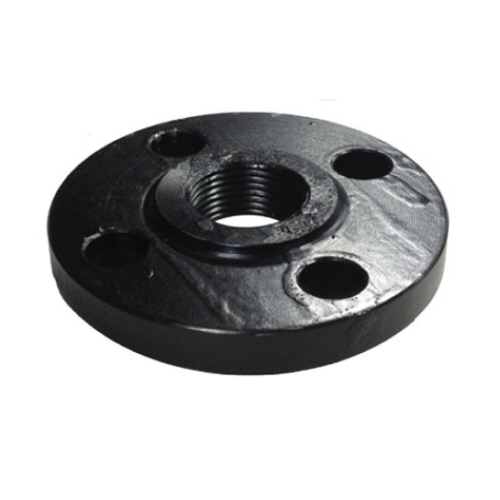

DN20 (3/4" NB) ASA300 3/4" NPT THREADED FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-20-FF-SCR-300-A105N
Size (Inch)
3/4"
Outside Diameter (mm)
26.70mm
Weight
1.2 KG
Outside diameter (O): 117.3mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 47.7mm
Pitch circle diameter (K): 82.5mm
Raised face diameter (Y): 25.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 28.9mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
