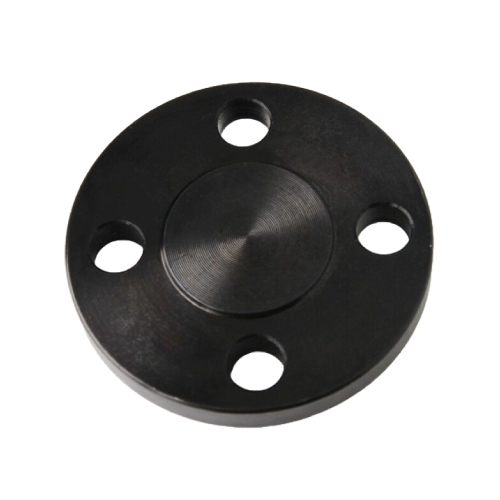

DN20 (3/4" NB) ASA300 RF BLIND FLANGE CS A105N

DN20 (3/4" NB) ASA300 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-20-RF-BLA-300-A105N
Size (Inch)
3/4"
Outside Diameter (mm)
26.70mm
Weight
1.2 KG
https://www.processflow.co.uk/web/image/product.template/15635/image_1920?unique=8676e68

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3/4"
Outside Diameter (mm) 26.70mm
