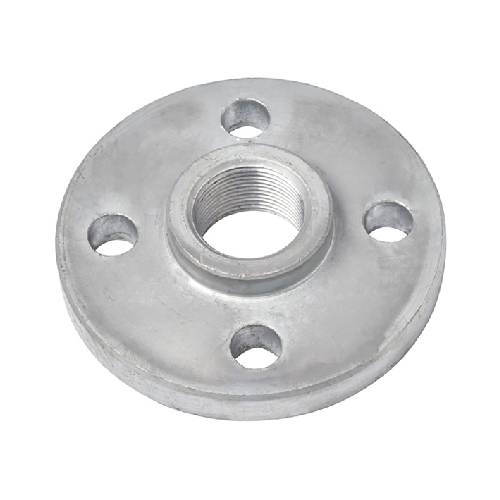

DN20 (3/4" NB) ASA150 3/4" NPT GALVANISED THREADED FLANGE CS A105N
Technical Specification
Product Code
CS-NB-FLA-20-RF-SCR-NPT-150-A105N-GAL
Size (Inch)
3/4"
Outside Diameter (mm)
26.70mm
Weight
0.7 KG
Outside diameter (O): 98.5mm
Hub diameter at base (C): 12.7mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 69.8mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
