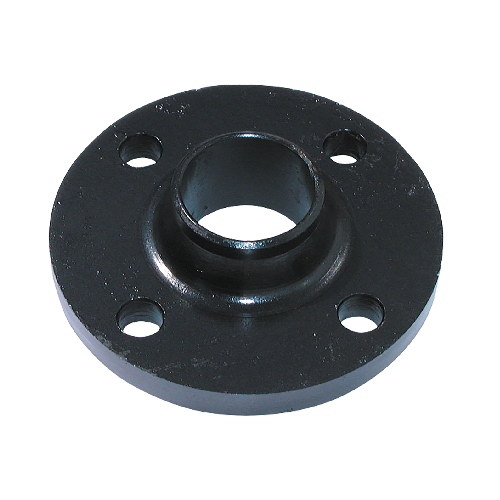

DN20 (3/4" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

DN20 (3/4" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-20-RF-WN-STD-S40-A150-A105N
Size (Inch)
3/4"
Outside Diameter (mm)
26.70mm
Weight
0.7 KG
https://www.processflow.co.uk/web/image/product.template/15762/image_1920?unique=29d0392

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.70 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Hub length (X): 38.1mm
Neck height (A): 26.6mm
Pitch circle diameter (K): 69.8mm
Hub base diameter (Y): 52.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Product Code: CS-NB-FLA-20-RF-WN-STD-S40-A150-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3/4"
Outside Diameter (mm) 26.70mm
