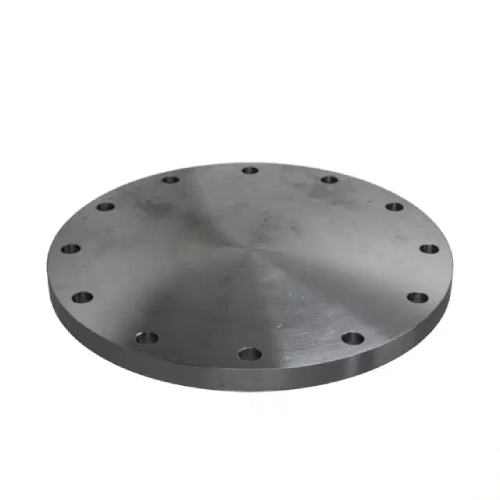

DN200 (8" NB) PN16 FF BLIND FLANGE CS S235 JR
Technical Specification
Product Code
CS-NB-FLA-200-FF-BLA-P16-S235JR
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
9.73 KG
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
