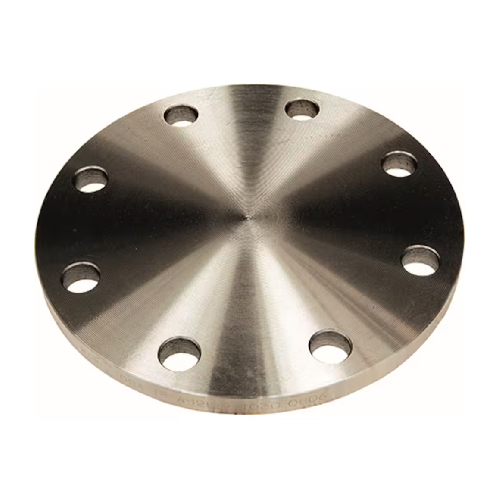

DN200 (8" NB) PN6 FF BLIND FLANGE CS S235 JR

DN200 (8" NB) PN6 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-200-FF-BLA-P6-S235JR
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
12.3 KG
https://www.processflow.co.uk/web/image/product.template/15295/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 12.30 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 258mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Product Code: CS-NB-FLA-200-FF-BLA-P6-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
