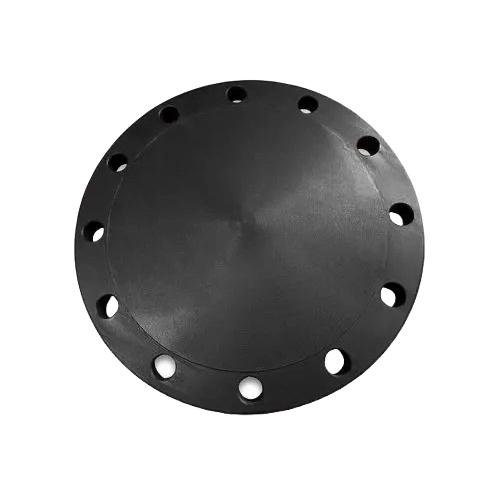

DN200 (8" NB) ASA300 RF BLIND FLANGE CS A105N

DN200 (8" NB) ASA300 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-200-RF-BLA-300-A105N
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
32.6 KG
https://www.processflow.co.uk/web/image/product.template/15645/image_1920?unique=dae48f3

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 32.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
