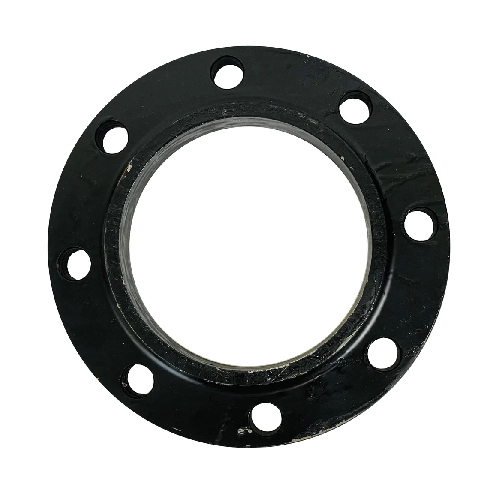

DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-200-RF-SOB-ASA150-A105N
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
12.6 KG
https://www.processflow.co.uk/web/image/product.template/15108/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 12.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Product Code: CS-NB-FLA-200-RF-SOB-ASA150-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
