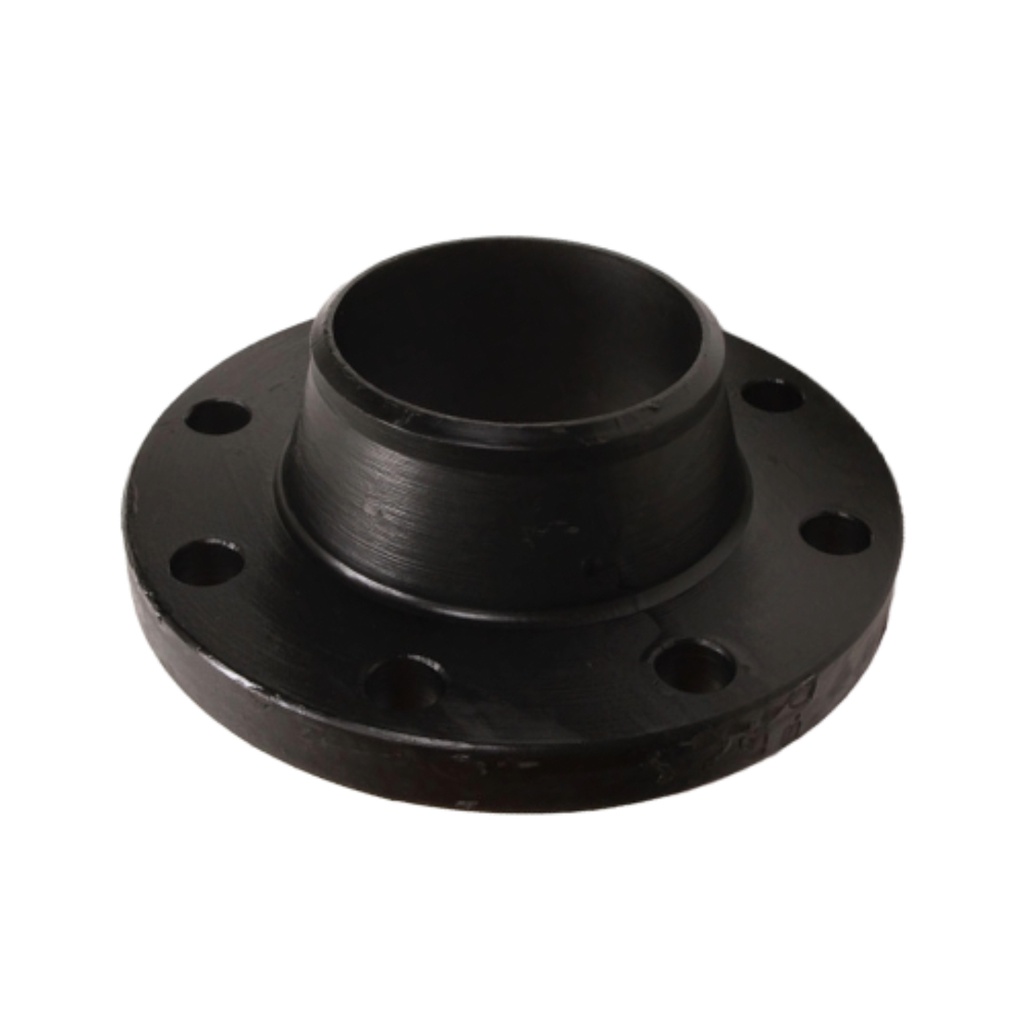

DN200 (8" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

DN200 (8" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-200-RF-WN-S20-A150-A105N
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
36.0 KG
https://www.processflow.co.uk/web/image/product.template/15753/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 36.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Product Code: CS-NB-FLA-200-RF-WN-S20-A150-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
