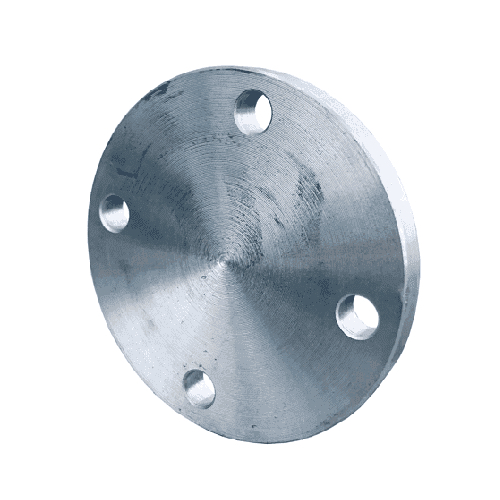

DN25 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Technical Specification
Product Code
CS-NB-FLA-25-FF-BLA-P40-S235JR
Outside Diameter (mm)
33.40mm
Weight
1.38 KG
Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
