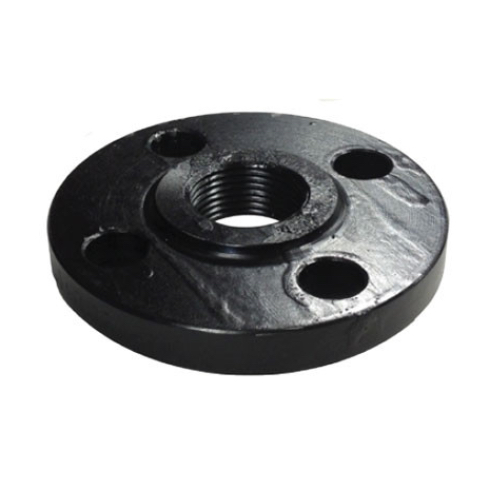

DN25 (1" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK
Flange outside diameter: 115mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 85mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1" |
| Outside Diameter (mm) | 33.40mm |
