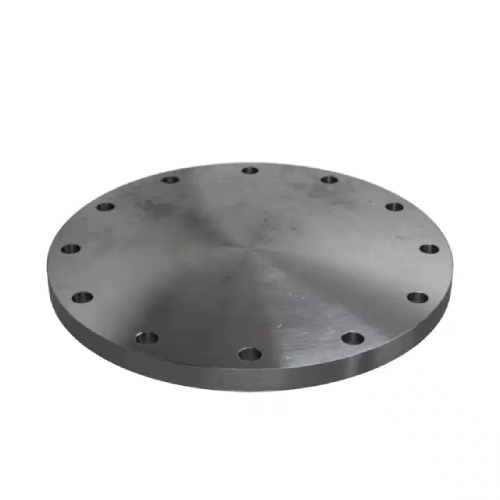

DN250 (10" NB) PN25 FF BLIND FLANGE CS S235 JR

DN250 (10" NB) PN25 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-250-FF-BLA-P25-S235JR
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
20.1 KG
https://www.processflow.co.uk/web/image/product.template/15396/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 20.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 10"
Outside Diameter (mm) 273.00mm
