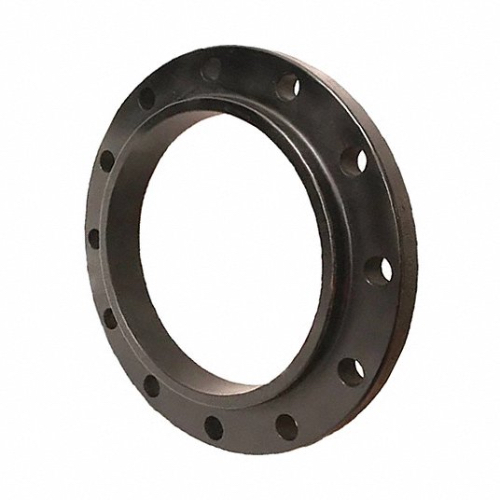

DN250 PN10 RF BOSSED SLIP ON FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-250-RF-SOB-P10-S235JR
Outside Diameter (mm)
273.00mm
Weight
12.8 KG
Flange outside diameter: 395mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 350mm (K)
Hub height: 46mm (H1)
Neck diameter: 298mm (N2)
Raised Face Diameter: 320mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
