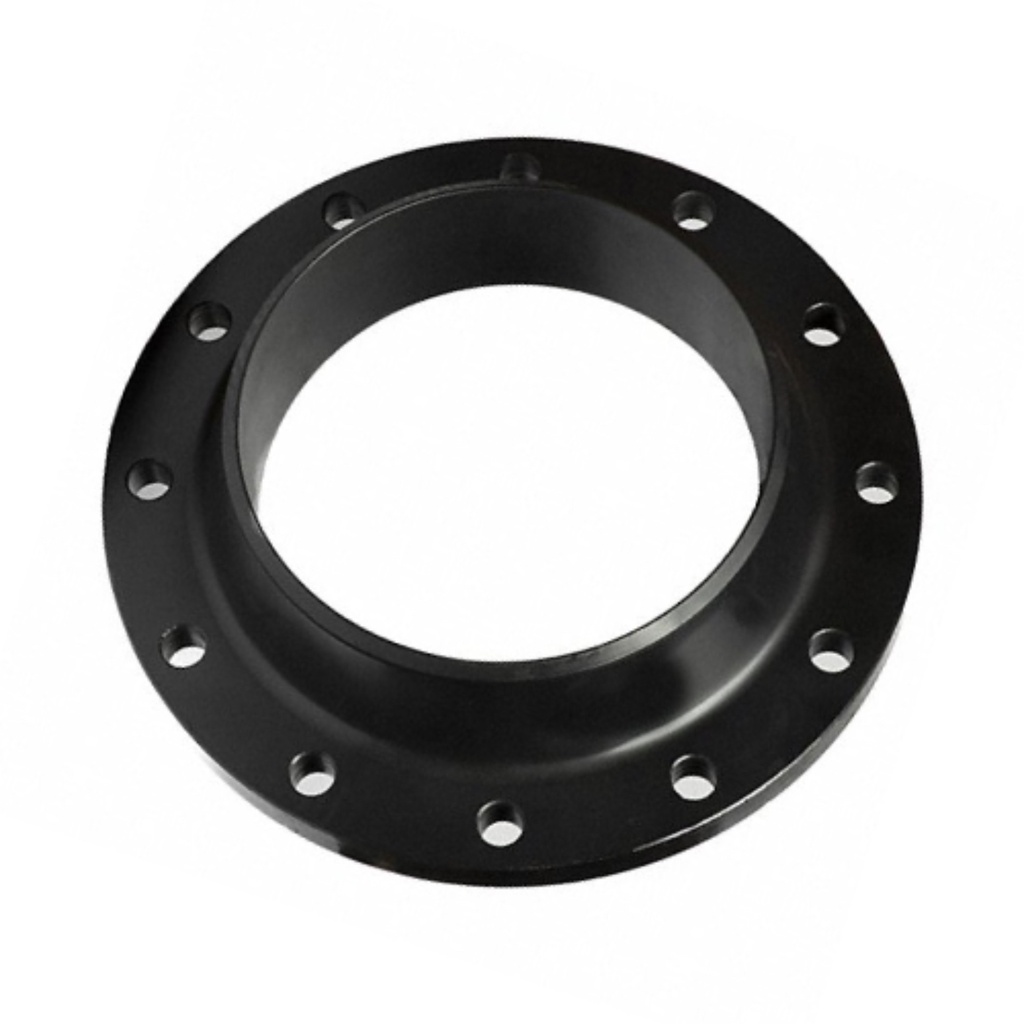

DN250 (10" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

DN250 (10" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-250-RF-WN-S20-A150-A105N
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
55.0 KG
https://www.processflow.co.uk/web/image/product.template/15754/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 55.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Product Code: CS-NB-FLA-250-RF-WN-S20-A150-A105N
