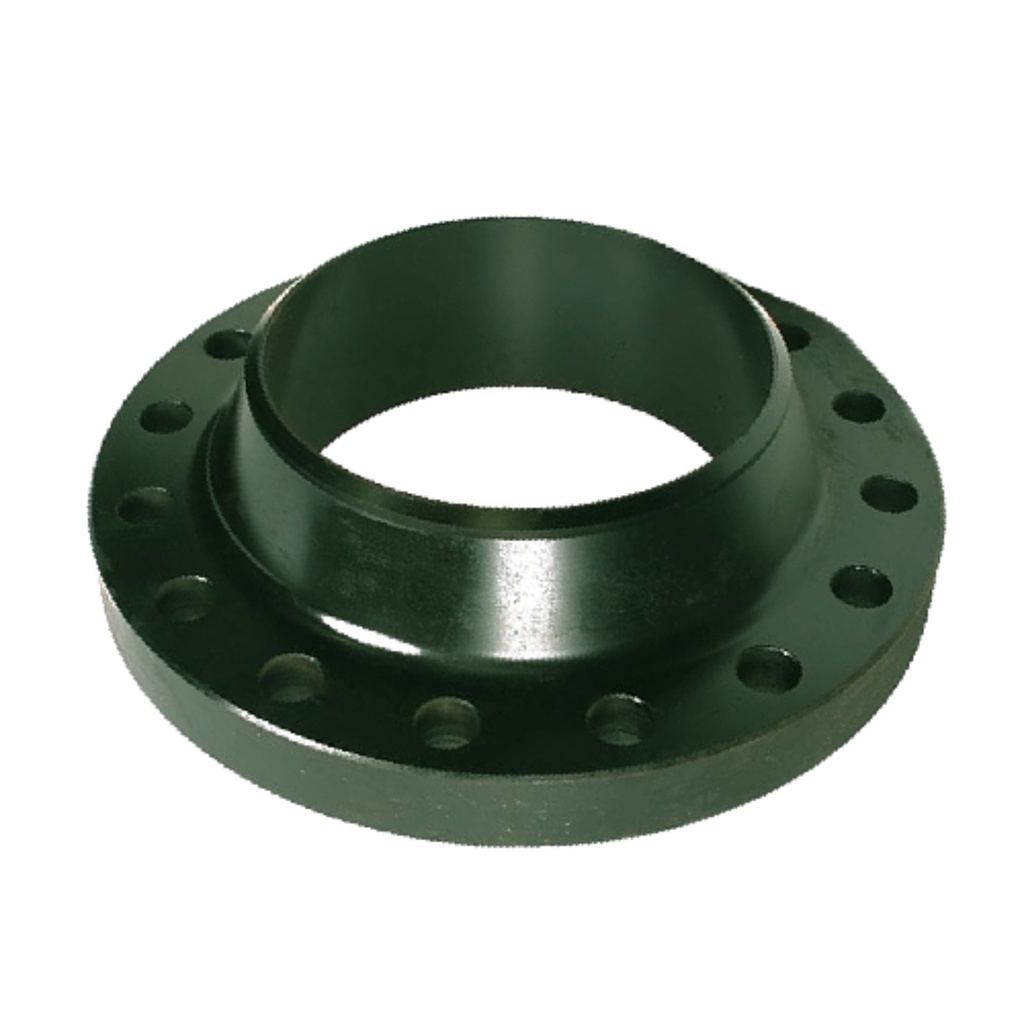

DN250 (10 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Technical Specification
Product Code
CS-NB-FLA-250-RF-WN-S80-300-A105N
Outside Diameter (mm)
273.00mm
Weight
44.3 KG
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 273.00mm |
