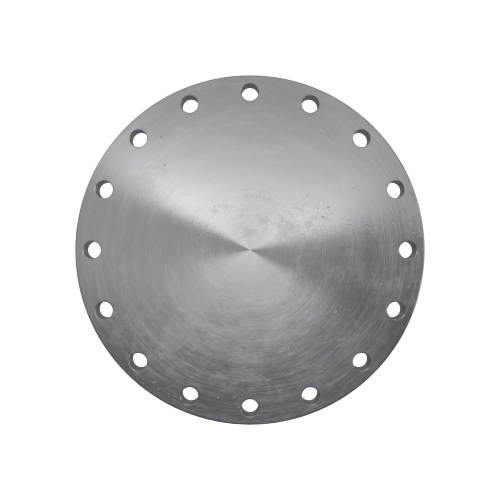

DN300 PN40 FF BLIND FLANGE CS S235 JR

DN300 PN40 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-300-FF-BLA-P40-S235JR
Outside Diameter (mm)
323.90mm
Weight
64.2 KG
https://www.processflow.co.uk/web/image/product.template/15437/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 64.20 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 323.90mm
