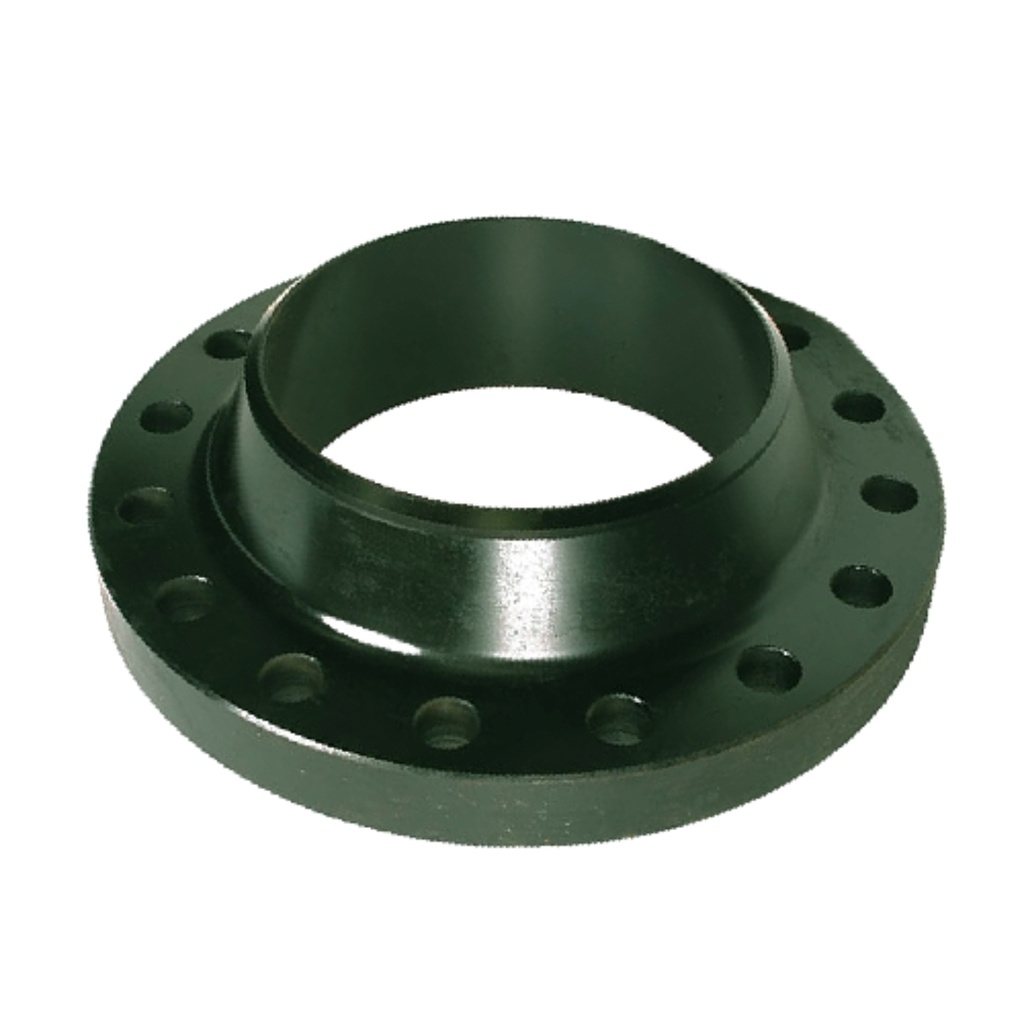

DN300 (12" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
Technical Specification
Product Code
CS-NB-FLA-300-RF-WN-S40-300-A105N
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
64.0 KG
Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg
