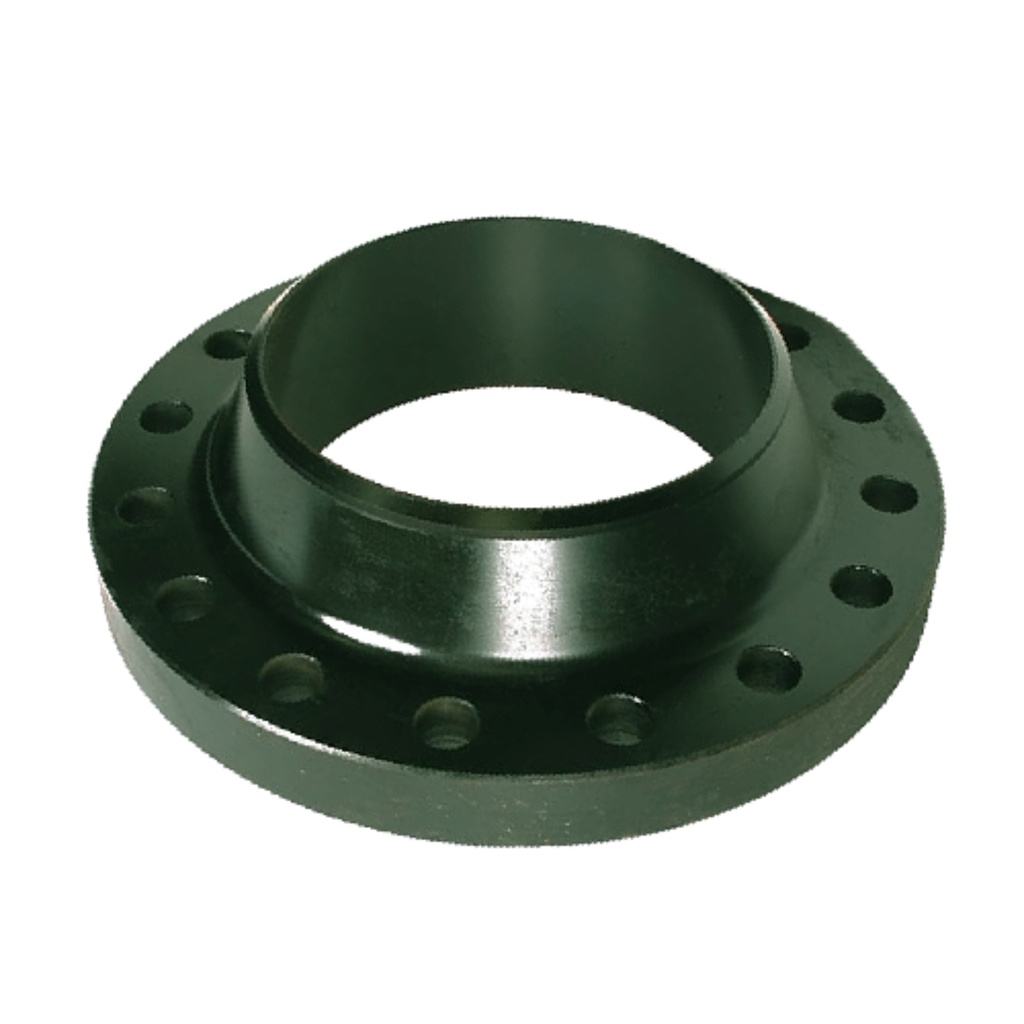

DN300 (12 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

DN300 (12 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-300-RF-WN-S80-300-A105N
Outside Diameter (mm)
323.90mm
Weight
64.0 KG
https://www.processflow.co.uk/web/image/product.template/15875/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 64.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg
Product Code: CS-NB-FLA-300-RF-WN-S80-300-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 323.90mm
