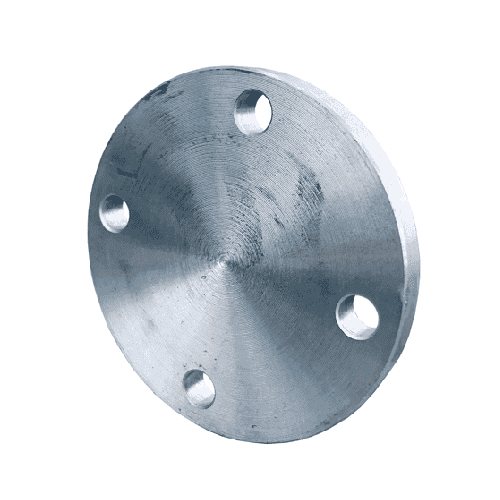

DN32 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR

DN32 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-32-FF-BLA-P40-S235JR
Outside Diameter (mm)
42.20mm
Weight
2.03 KG
https://www.processflow.co.uk/web/image/product.template/15427/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.03 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Product Code: CS-NB-FLA-32-FF-BLA-P40-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 42.20mm
