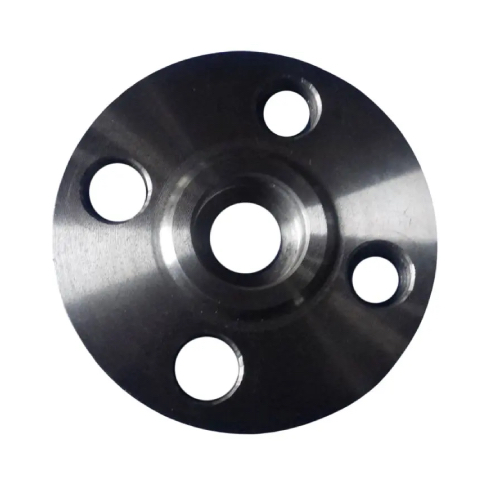

DN32 (1.1/4" NB) ASA300 RF SOCKET WELD FLANGE CS A105N

DN32 (1.1/4" NB) ASA300 RF SOCKET WELD FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-32-FF-SW-300-A105N
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
1.7 KG
https://www.processflow.co.uk/web/image/product.template/15572/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.70 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 133.0mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 64.0mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 25mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 63.5mm
Bore length (B): 43.2mm
Bore diameter (D): 14.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced
