  3. DN32 (1.1/4" NB) ASA1500 RF BLIND FLANGE CS A105N
Website List 200 (PFC)

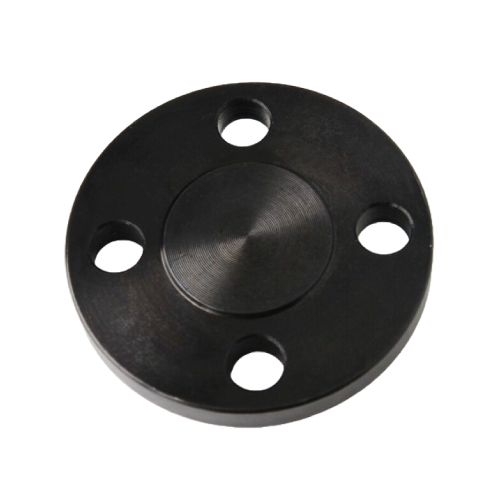

DN32 (1.1/4" NB) ASA1500 RF BLIND FLANGE CS A105N

DN32 (1.1/4" NB) ASA1500 RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-32-RF-BLA-1500-A105N
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
4.1 KG
https://www.processflow.co.uk/web/image/product.template/15694/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 4.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 158.7mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 111.2mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Product Code: CS-NB-FLA-32-RF-BLA-1500-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
