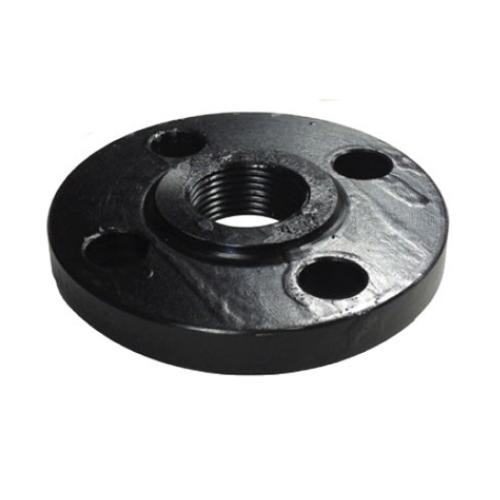

DN32 (1.1/4" NB) ASA150 1.1/4" NPT THREADED FLANGE CS A105N

DN32 (1.1/4" NB) ASA150 1.1/4" NPT THREADED FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-32-RF-SCR-NPT-150-A105N
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
1.2 KG
https://www.processflow.co.uk/web/image/product.template/15468/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Outside diameter (O): 117.3mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 58.6mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 20.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 63.5mm
Bore diameter (Q): 20.5mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
