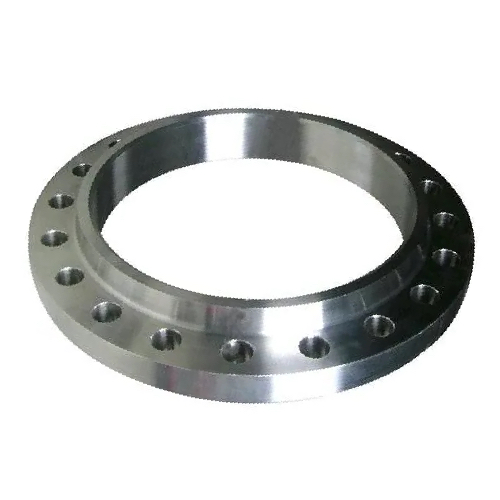

DN350 (14" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N

DN350 (14" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-350-RF-SOB-ASA600-A105N
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
100.0 KG
https://www.processflow.co.uk/web/image/product.template/15149/image_1920?unique=9f8b7da

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 100.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Product Code: CS-NB-FLA-350-RF-SOB-ASA600-A105N
