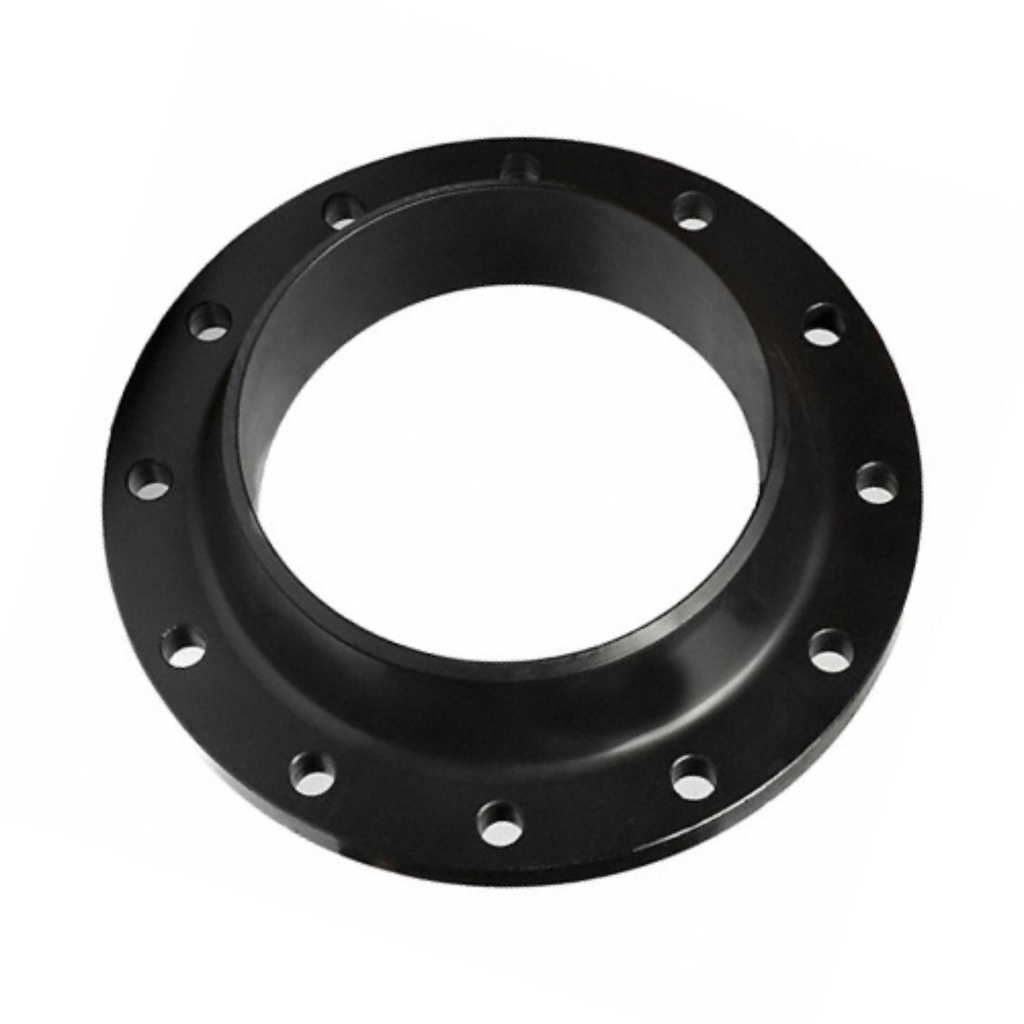

DN350 (14" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Hub length (X): 400.0mm
Neck height (A): 355.6mm
Pitch circle diameter (K): 476.2mm
Hub base diameter (Y): 127.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 14" |
| Outside Diameter (mm) | 355.60mm |
