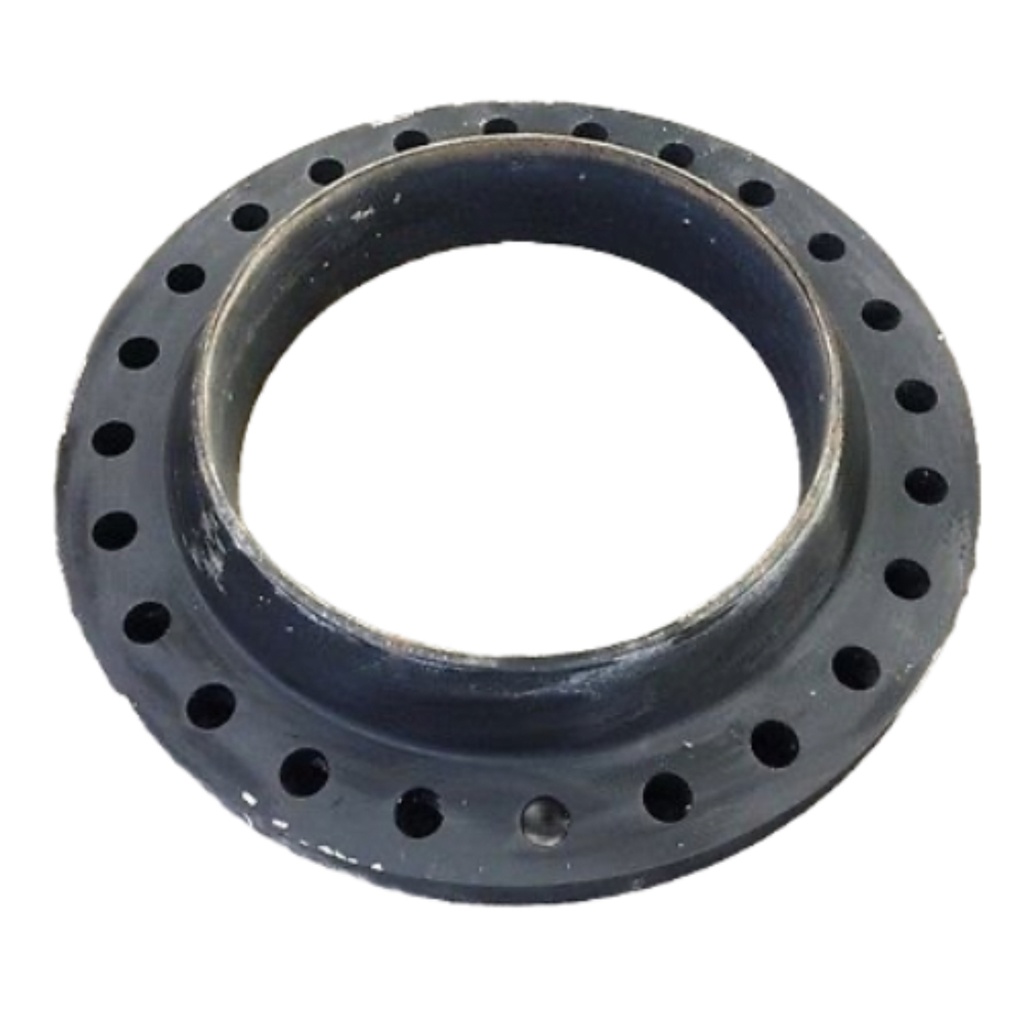

DN350 (14 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Technical Specification
Product Code
CS-NB-FLA-350-RF-WN-S80-300-A105N
Outside Diameter (mm)
355.60mm
Weight
88.0 KG
Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Hub height (X): 425.4mm
Length through hub (A): 355.6mm
Bolt circle diameter (K): 444.5mm
Overall height (Y): 142.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 412.7mm
Number of bolt holes: 20
Bolt hole diameter: 31.7mm
Approx. weight: 88.0kg
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 355.60mm |
